| colour: | raw aluminum |
| length: | 2 m |
| Certificate: | CE |
| material: | aluminum |
| maximum tape width: | 10 mm |
| lighting angles: | 30deg, 60deg |

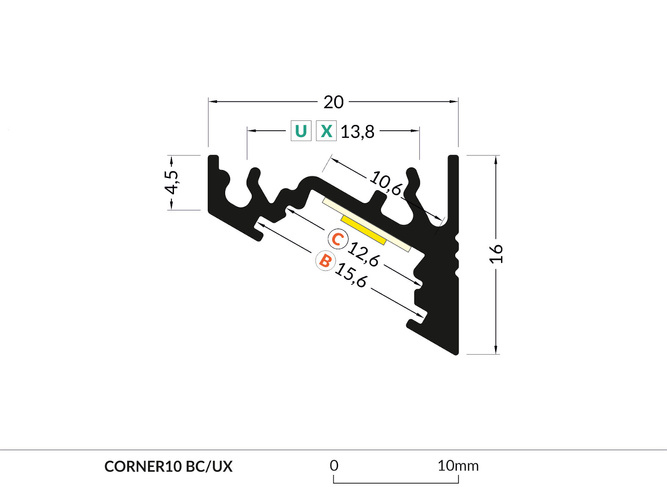

| size: | 20 x 16 mm |
| compatible covers: | B slide (transparent, frosted, opal), C click (transparent, opal), C lens |
| dedicated holdings: | U flexible mounting plate, cone U flexible mounting plate, X mounting plate |
| GTIN: | 5901597206255 |
| kind of profile: | corner |
| product code: | 83050000 |
| dedicated connectors: | X connector 180deg, CORNER10 connector 90deg |
Files to download
LED profile CORNER10 BC/UX 2m raw aluminium

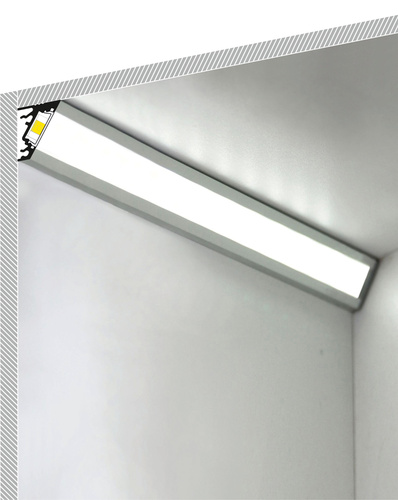

CORNER10 LED aluminum profile from the Polish company TOPMET will be perfect as under-cabinet lighting, illuminate the interior of wardrobes, shelves, shop cabinets.

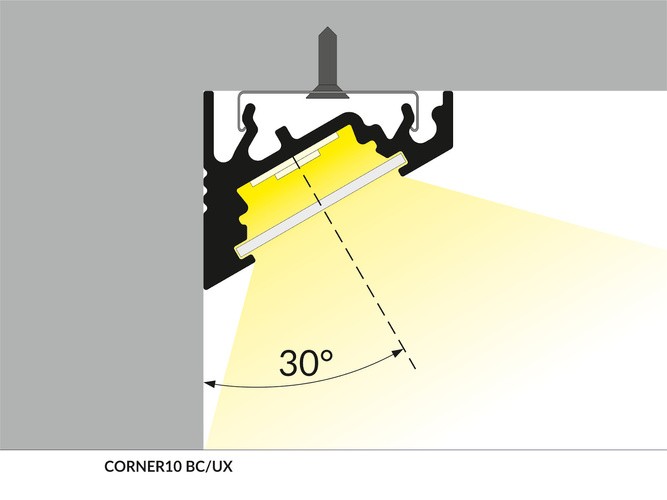

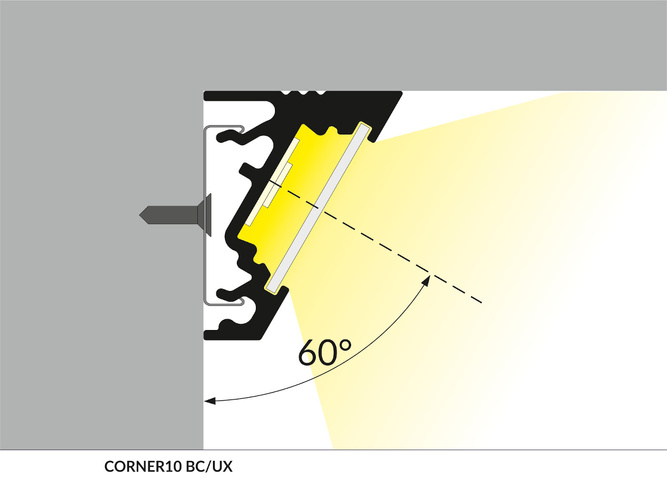

Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
CORNER10 LED profile in a section of 2m is made of raw aluminum.
This is the most economical version, intended for further processing. Raw aluminum profiles have scratches, they are less resistant to damage and corrosion than anodized profiles.
It is recommend to instal the CORNER10 LED profile using dedicated U flexible mounting plate (U cone, which will allow veneering the profile with the mounting surface or U flexible with a delicate distance) and X mounting plate.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.

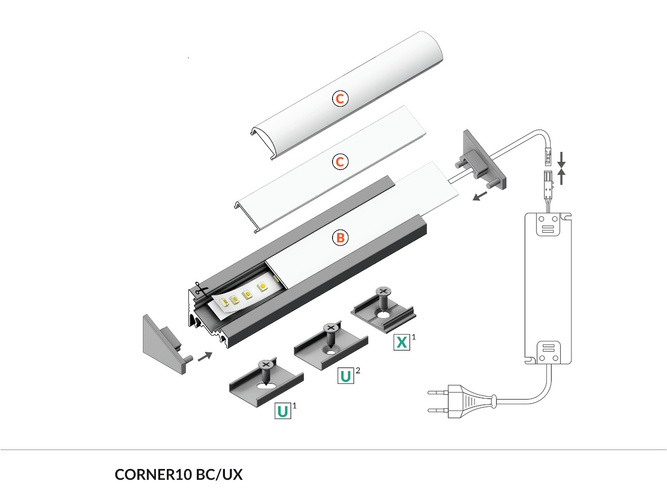

DEDICATED ENDINGS:
- CORNER10 gen2 ending
- CORNER10 gen2 with hole ending
DEDICATED MOUNTINGS:
- U cone mounting plate
- U flexible mounting plate
- X mounting plate
DEDICATED COVERS:
- B slide cover (transparent, frosted, opal)
- C click cover (transparent, opal)
- C lens cover (transparent)
DEDICATED CONNECTORS:
- X connector 180 deg (for connecting profiles in one line)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
