Tech specs:
| colour: | white |
| length: | 2 m |
| Certificate: | CE |
| maximum tape width: | 10 mm |
| lighting angles: | 30deg, 60deg |
| compatible covers: | B slide (transparent, frosted, opal), C click (transparent, opal), C lens |
| dedicated holdings: | U flexible mounting plate, cone U flexible mounting plate, X mounting plate |
| GTIN: | 5901597203490 |
| kind of profile: | corner |
| product code: | 83050001 |
| dedicated connectors: | X connector 180deg, CORNER10 connector 90deg |
Files to download

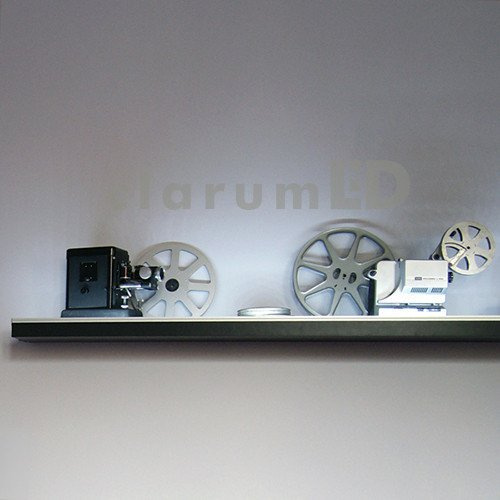

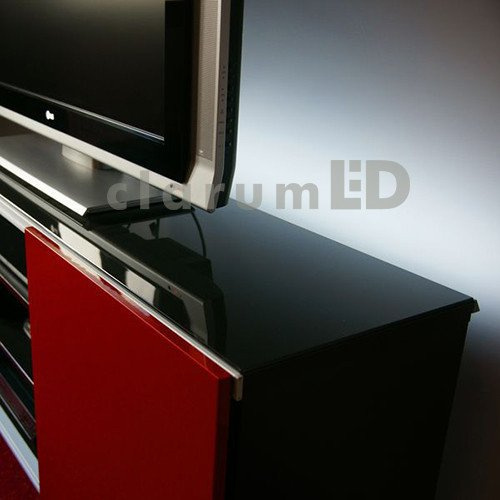

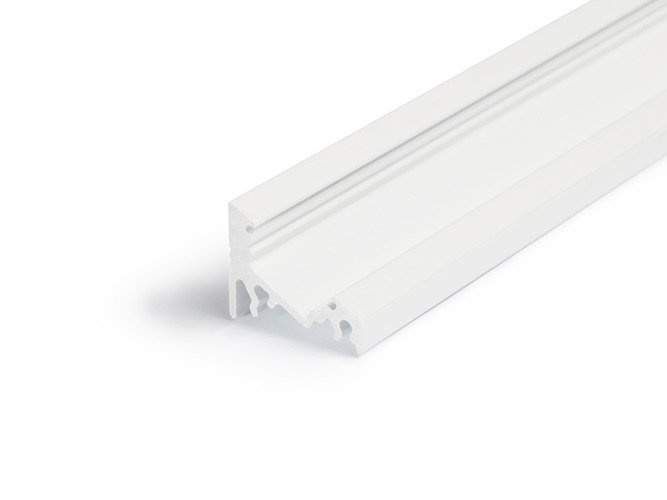

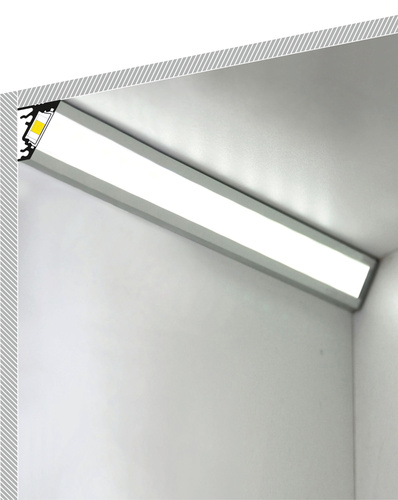

The CORNER10 LED aluminium profile from the Polish company TOPMET is perfect for under-cabinet lighting and for illuminating the interior of wardrobes, shelves, and shop cabinets.

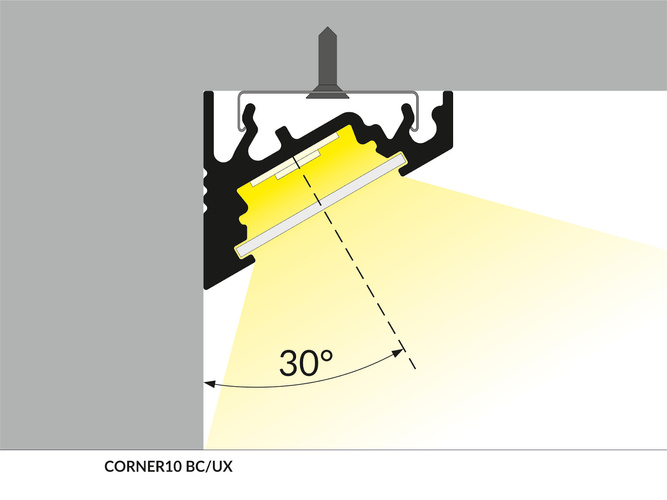

Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
DEDICATED ENDINGS:
- CORNER10 gen2 ending
- CORNER10 gen2 with hole ending
DEDICATED MOUNTINGS:
- U cone mounting plate
- U flexible mounting plate
- X mounting plate
DEDICATED COVERS:
- B slide cover (transparent, frosted, opal)
- C click cover (transparent, opal, black)
- C lens cover (transparent)
DEDICATED CONNECTORS:
- X connector 180 deg (for connecting profiles in one line)
