length: | 3 m |
colour: | raw aluminum |
GTIN: | 5901597249283 |
dedicated holdings: | S flexible mounting plate, cone S flexible mounting plate |
compatible covers: | J slide (transparent, frosted, milk), C click (transparent, milk) |
maximum tape width: | 12 mm |
application: | surface |
manufacturer: | Topmet Light |
product code: | C7030000 |
Files to download

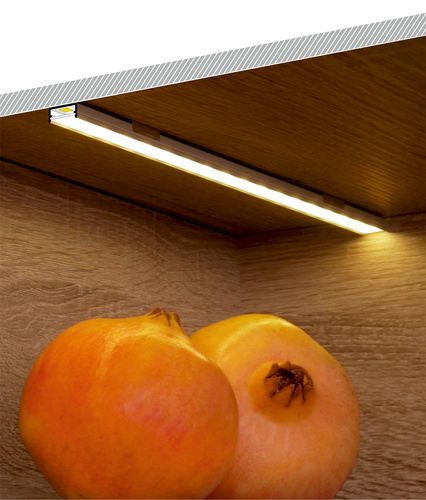

BEGTON12 CJ/S LED aluminium surface profile of the Polish company TOPMET is perfect for interior lighting for wardrobes, shelves, shop shelves, suspended ceilings and various recesses.

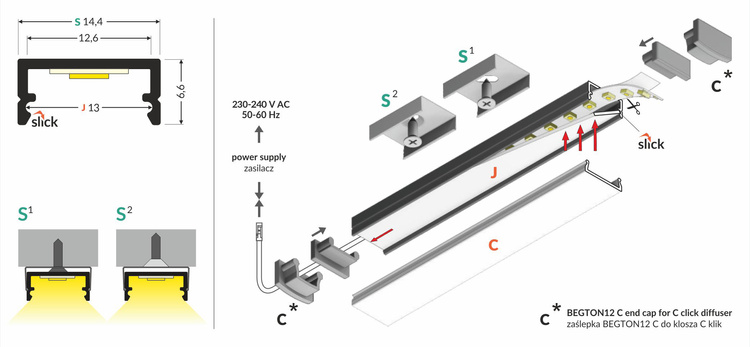

In the BEGTON12 LED profile, it is possible to use diffuser J (the Slick socket in this profile allows the diffuser cover J to be clicked in case the profile is mounted where it is impossible to slide the cover). If you want to avoid problems with mounting the slide-in diffuser cover J, using the inlay diffuser cover C is recommended.
It is recommended to install the BEGTON12 LED profile using dedicated resilient mounting clip S (mounting clip S cone – veneering the profile with the mounting surface; mounting clip S – keeping the profile at a gentle distance from the mounting surface).
In addition to the aesthetic function, the profile is to serve as a heat sink to extend the LED strip life by protecting it from excessive overheating. The compatible diffuser cover and end caps protect the LED strip against dirt and mechanical damage.
Profile mounting manual and dedicated accessories for the BEGTON12 LED profile are also available in the catalogue card.
DEDICATED MOUNTINGS:
- S cone flexible mounting plate
- S flexible mounting plate
DEDICATED COVERS:
- J slide cover (transparent, frosted, opal)
- C click cover (transparent, opal, black)
DEDICATED ENDINGS:
- BEGTON12 JC/S ending (to use with J slide cover)
- BEGTON12 C ending (to use with C click cover)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation, it is possible to plan the light dispersion and obtain the desired light effect. The transparent cover absorbs the least light, next is frosted and opal.
PROFILE NAME MARKINGS:
