S flexible mounting plate, cone S flexible mounting plate
J slide (transparent, frosted, milk), C click (transparent, milk)
|maximum tape width:
Files to download
LED profile BEGTON12 J/S 2m raw aluminium

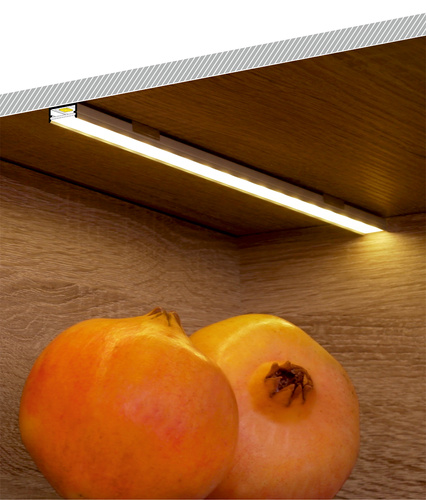

BEGTON12 CJ/S LED aluminium surface profile of the Polish company TOPMET, is perfect as an interior lighting for wardrobes, shelves, shop shelves, suspended ceilings and various recesses.
BEGTON12 LED profile available in 2m section is made of raw aluminium.

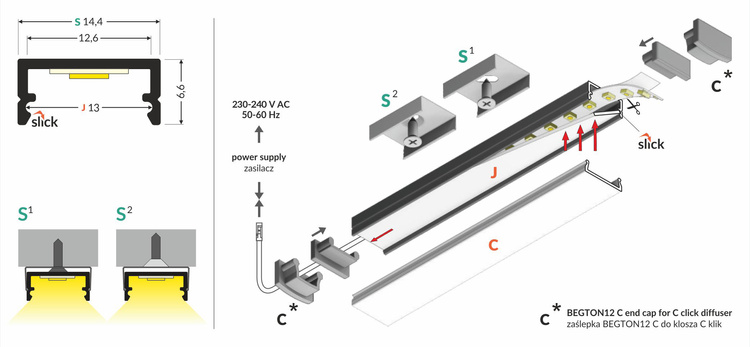

In the BEGTON12 LED profile, it is possible to use diffuser J (the Slick socket in this profile allows the diffuser cover J to be clicked in case the profile is mounted in a place where it is impossible to slide the cover). If you want to avoid problems with mounting the slide-in diffuser cover J, it is recommended using the inlay diffuser cover C.
It is recommend to instal the BEGTON12 LED profile using dedicated resilient mounting clip S (mounting clip S cone – veneering the profile with the mounting surface; mounting clip S – keeping the profile with a gentle distance from the mounting surface).
In addition to the aesthetic function, the profile is to serve as a heat sink in order to extend the LED strip life by protecting it from excessive overheating. The compatible diffuser cover and end caps protect the LED strip against dirt and mechanical damage.
Profile mounting manual and dedicated accessories for BEGTON12 LED profile are also available in the catalogue card.
- S cone flexible mounting plate
- S flexible mounting plate
- J slide cover (transparent, frosted, opal)
- C click cover (transparent, opal)
- BEGTON12 JC/S ending (to use with J slide cover)
- BEGTON12 C ending (to use with C clicked cover)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
