length: | 1 m |
colour: | raw aluminum |
GTIN: | 5901597206262 |
dedicated connectors: | T connector 180deg, CORNER14 connector 90deg |
dedicated holdings: | Y flexible mounting plate, cone Y flexible mounting plate, X mounting plate |
compatible covers: | E slide (transparent, frosted, milk), F click (transparent, milk), E7 click (milk) |
kind of profile: | corner |
manufacturer: | Topmet Light |

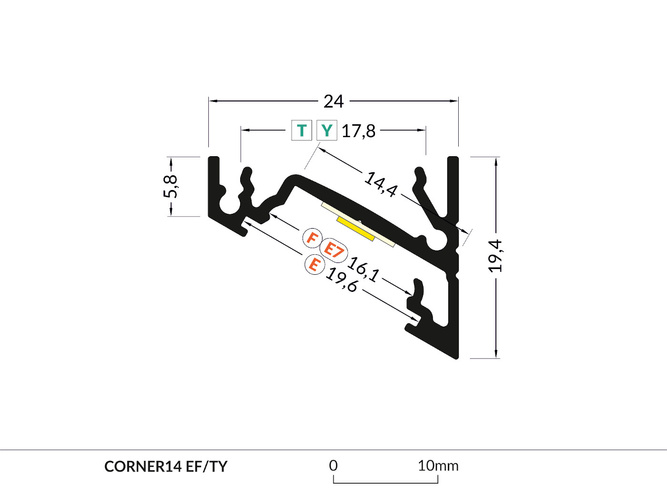

maximum tape width: | 14 mm |
product code: | A4020020 |
Files to download

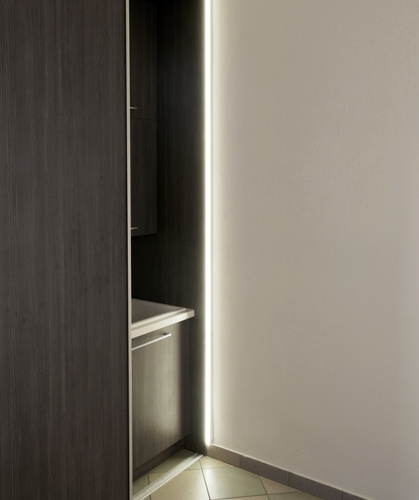

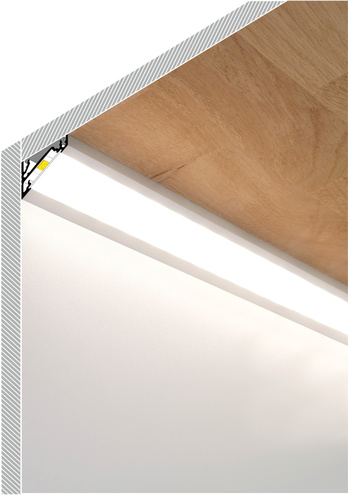

Aluminium profile CORNER14, by the Polish company TOPMET, is very often used as a decorative element in furniture. It is most often chosen by our clients as under cabinet lighting for illuminating the kitchen worktop.
It is recommended to install the CORNER14 LED profile using a dedicated Y flexible mounting plate (Y cone, which will allow veneering of the profile with the mounting surface or Y flexible with a delicate distance) and a T mounting plate. The profile can also be mounted with screws, mounting glue or good-quality double-sided tape.
CORNER14 LED profile has dedicated F-click covers (transparent, opal, black) and E-slide covers (transparent, frosted, opal).

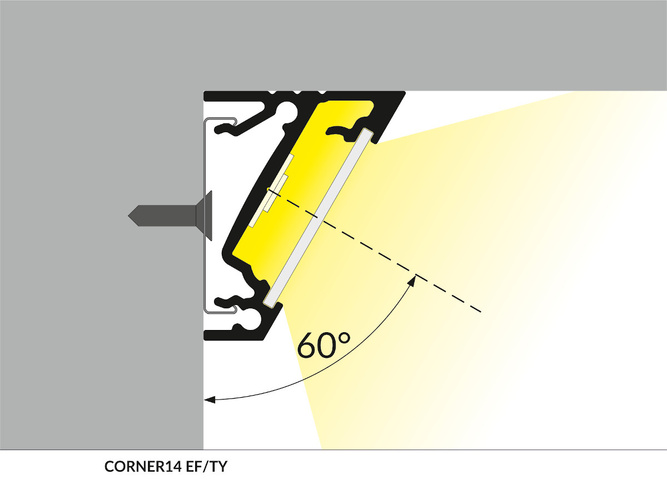

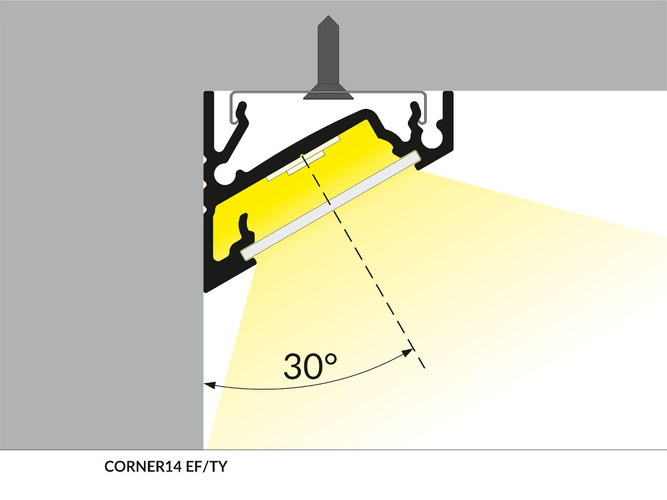

Depending on the choice of CORNER14 profile fastening method, the LED strip can give light at an angle of 30deg or 60deg.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.

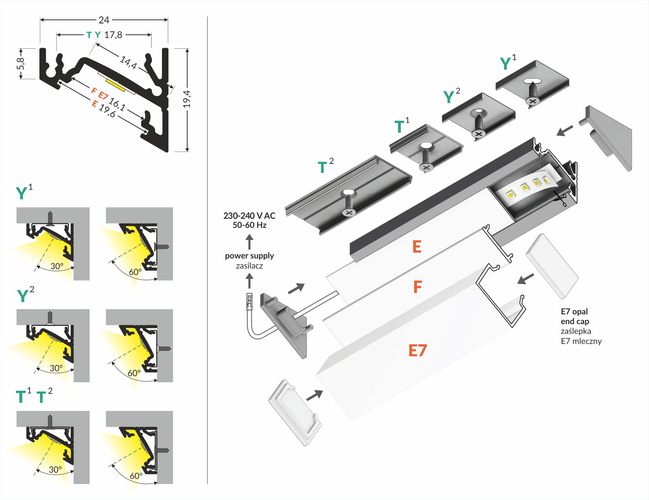

DEDICATED MOUNTINGS:
- Y cone mounting plate
- Y flexible mounting plate
- T mounting plate
DEDICATED COVERS:
- E slide cover (transparent, frosted, opal)
- F click cover (transparent, opal, black)
- E7 cover
DEDICATED ENDINGS:
- CORNER14 gen2 ending
- CORNER14 gen2 with hole ending
DEDICATED CONNECTORS:
- T connector 180deg (for connecting profiles in one line)
- CORNER14 90deg connector (compatible only when the viewing angle is 60deg)
