| colour: | black |
| length: | 2 m |
| GTIN: | 5901597203766 |
| dedicated connectors: | T connector 180deg, CORNER14 connector 90deg |
| dedicated holdings: | Y flexible mounting plate, cone Y flexible mounting plate, X mounting plate |
| compatible covers: | E slide (transparent, frosted, milk), F click (transparent, milk), E7 click (milk) |
| kind of profile: | corner |
| manufacturer: | Topmet Light |
| maximum tape width: | 14 mm |
| product code: | A4020020 |
Files to download
CORNER14 EF/TY LED profile 2000 black anodized aluminum

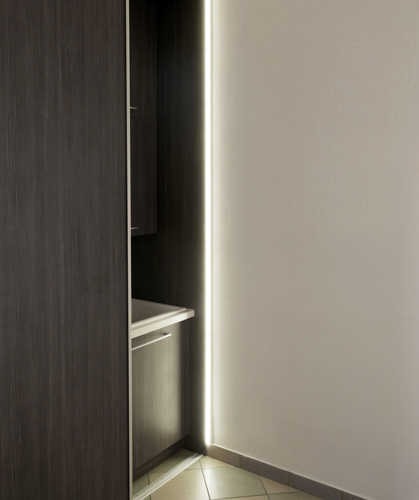

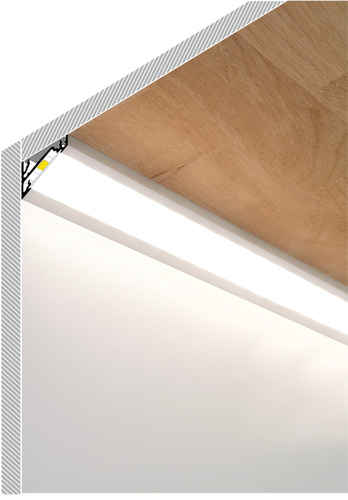

Aluminum corner profile for CORNER14 LED strips, by the Polish company TOPMET, is very often used as a decorative element in furniture. It is most often chosen by our clients as under cabinet lighting for illuminating the kitchen worktop.
CORNER14 LED profile in 2m section is made of black anodized aluminum.
It is recommend to instal the CORNER14 LED profile using dedicated Y flexible mounting plate (Y cone, which will allow veneering the profile with the mounting surface or Y flexible with a delicate distance) and T mounting plate. The profile can also be mounted with screws, mounting glue or good quality double-sided tape.
CORNER14 LED profile has dedicated F click covers (transparent, opal) and E slide covers (transparent, frosted, opal).
Depending on the choice of CORNER14 profile fastening method, the LED strip can give light at an angle of 30deg or 60deg.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
DEDICATED MOUNTINGS:
- Y cone mounting plate
- Y flexible mounting plate
- T mounting plate
DEDICATED COVERS:
- E slide cover (transparent, frosted, opal)
- F click cover (transparent, opal)
- E7 cover
DEDICATED ENDINGS:
- CORNER14 with hole ending
- CORNER14 gen2 with hole ending
DEDICATED CONNECTORS:
- T connector 180deg (for connecting profiles in one line)
- CORNER14 90deg connector (compatible only when the viewing angle is 60deg)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
PROFILE NAME MARKINGS:
We also send profiles in lengths of 3000 and 4000 mm. For this purpose, please contact us by phone: +48 735 939 920 or by e-mail: info@clarumled.com
