|maximum tape width:|
20 x 16 mm
B slide (transparent, frosted, opal), C click (transparent, opal), C lens
U flexible mounting plate, cone U flexible mounting plate, X mounting plate
|kind of profile:|
X connector 180deg, CORNER10 connector 90deg
Files to download
LED profile CORNER10 BC/UX 1000 black anodized

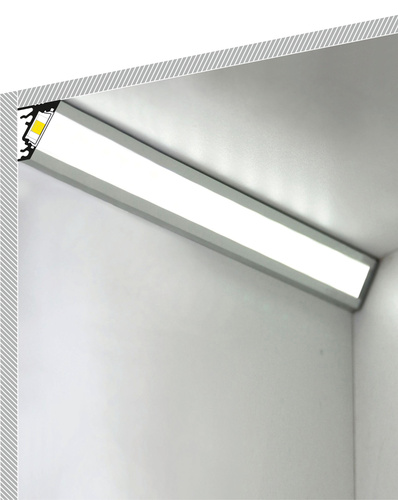

CORNER10 LED aluminum profile from the Polish company TOPMET will be perfect as under-cabinet lighting, illuminate the interior of wardrobes, shelves, shop cabinets.
Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
CORNER10 LED profile in a section of 1m is made of black anodized aluminum.
It is recommend to instal the CORNER10 LED profile using dedicated U flexible mounting plate (U cone, which will allow veneering the profile with the mounting surface or U flexible with a delicate distance) and X mounting plate.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
- CORNER10 gen2 ending
- CORNER10 gen2 with hole ending
- U cone mounting plate
- U flexible mounting plate
- X mounting plate
- B slide cover (transparent, frosted, opal)
- C click cover (transparent, opal)
- C lens cover (transparent)
- X connector 180o (for connecting profiles in one line)
- CORNER10 90o connector
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
PROFILE NAME MARKINGS:
