colour: | raw aluminum |
length: | 4 m |
Certificate: | CE |
maximum tape width: | 16 mm |
lighting angles: | 30deg, 60deg |
compatible covers: | A6 slide (transparent, frosted, opal); C6 click (transparent, opal, black) |
dedicated holdings: | Y flexible mounting plate, cone Y flexible mounting plate, T mounting plate |
GTIN: | 5901597228547 |
manufacturer: | Topmet Light |
kind of profile: | corner |
product code: | K9000400 |
Files to download

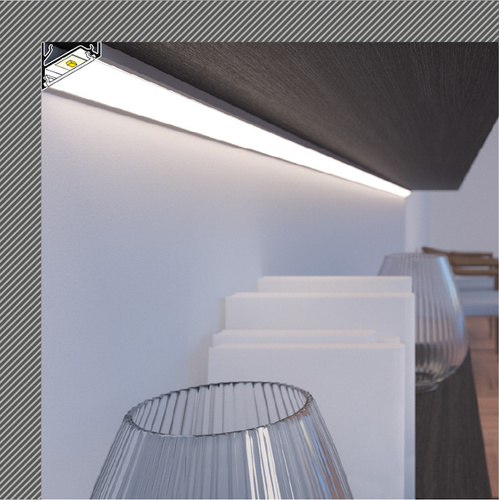

CORNER16.v2 LED aluminium profile from the Polish company TOPMET will be perfect as under-cabinet lighting, illuminating the interior of wardrobes, shelves, and shop cabinets.
Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
It is recommended to instal the CORNER16.v2 LED profile using dedicated Y flexible mounting plate (Y cone, which will allow veneering the profile with the mounting surface or Y flexible with a delicate distance) and T mounting plate.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
DEDICATED ENDINGS:
- end caps CORNER16.v2 (grey, silver, black, white)
DEDICATED MOUNTINGS:
- Y cone mounting plate
- Y flexible mounting plate
- T mounting plate
DEDICATED COVERS:
- A6 slide cover (transparent, frosted, opal)
- C6 click cover (transparent, opal, black)
DEDICATED CONNECTORS:
- T connector 180 deg (for connecting profiles in one line)
