| colour: | silver |
| length: | 4 m |
| Certificate: | CE |
| maximum tape width: | 12 mm |
| lighting angles: | 30deg, 60deg |
| compatible covers: | wsuwany E (transparentny, szron, mleczny), F klik (transparentny, mleczny, czarny) |
| dedicated holdings: | U, U cone |
| GTIN: | 5901597217725 |
| manufacturer: | Topmet Light |
| kind of profile: | corner |
| product code: | J7000420 |
Files to download

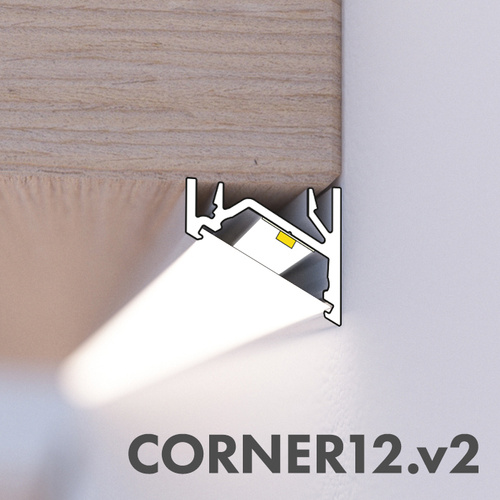

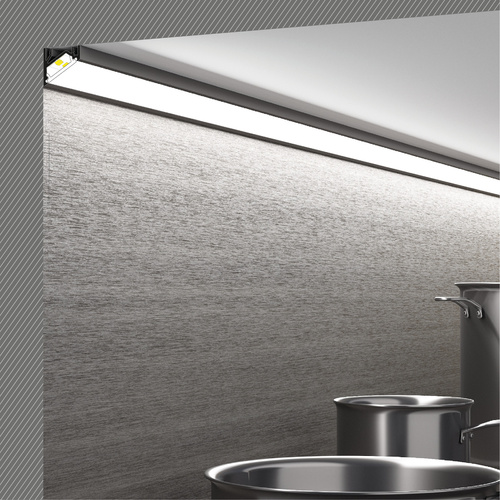

CORNER12.v2 LED aluminum profile from the Polish company TOPMET will be perfect as under-cabinet lighting, illuminate the interior of wardrobes, shelves, shop cabinets.
Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
It is recommended to instal the CORNER12.v2 LED profile using a dedicated U flexible mounting plate (U cone, which will allow veneering the profile with the mounting surface or U flexible with a delicate distance).
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
DEDICATED ENDINGS:
- CORNER12.v2 (silver, grey, white and black)
DEDICATED MOUNTINGS:
- U cone mounting plate
DEDICATED COVERS:
- E slide cover (transparent, frosted, opal)
- F click cover (transparent, opal)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
