| colour: | white |
| length: | 4 m |
| GTIN: | 5901597256106 |
| maximum tape width: | 12 mm |
| compatible covers: | E slide (transparent, frosted, milk) |
| kind of profile: | corner |
| manufacturer: | Topmet Light |
| product code: | C9040001 |
Files to download

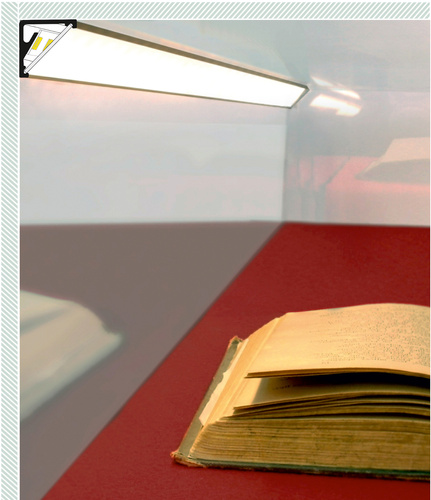

CABI12 aluminium corner profile is mainly used as furniture lighting. The profile structure that allows hiding cables makes CABI12 look very effective also in glass cases.

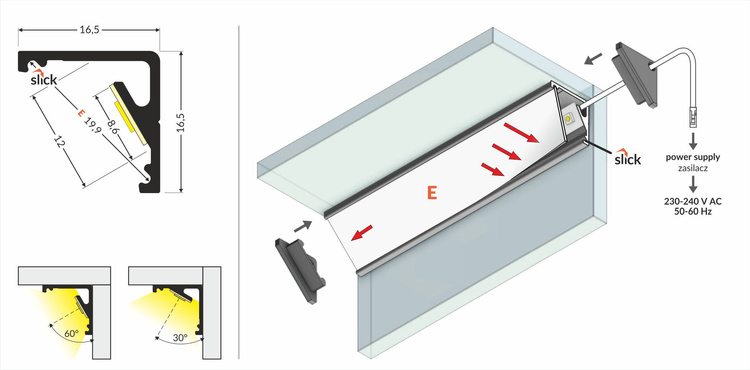

Depending on the choice of mounting method, the profile can shine at an angle of 30deg or 60deg.
The profile for LED strips has a slick socket, thanks to which it is possible to mount a dedicated E slide cover (transparent, frosted, opal).
It is also possible to mount a CABI12 profile using good-quality double-sided tape or mounting glue.
DEDICATED COVERS:
- E slide cover (transparent, frosted, opal)
DEDICATED ENDINGS:
- CABI12 ending
HOW TO CHOOSE THE DIFFUSER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
PROFILE NAME MARKINGS:
