LED profile SMART16 BC3/U4 3000 alu.raw
LED profile SMART16 BC3/U4 3000 alu.raw
LED profile SMART16 BC3/U4 3000 alu.raw
LED profile SMART16 BC3/U4 3000 alu.raw

LED profile SMART16 BC3/U4 3000 alu.raw

Producer:Topmet Light
Product code:F1030000
27,90 €
/ piece
Tech specs:
colour:
raw aluminum
length:
3 m
GTIN:
5901597251668
kind of profile:
surface
material:
aluminum
manufacturer:
Topmet Light
product code:
F1030000

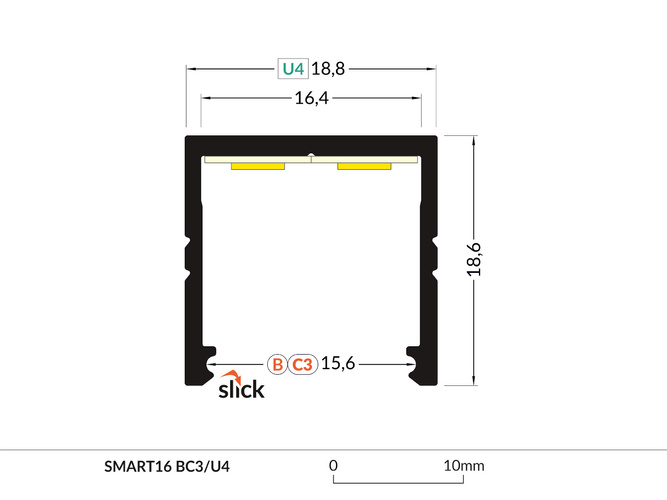

width:
18,8 mm
height:
18,6 mm
maximum tape width:
16 mm

Files to download

  • folder

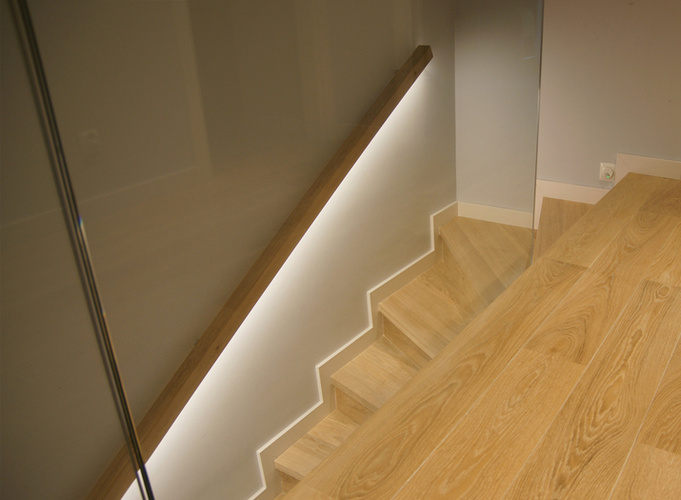

SMART16 LED aluminium surface profile of the Polish company TOPMET is perfect as an interior lighting for wardrobes, shelves, shop shelves. In combination with opal diffusor cover and LED strip it is possible to reach the effect of a continuous light line

SMART16 LED profile was created as a response to the customer expectations who were looking for a product with dimensions between the smallest SMART 10 profile and the largest LINEA20 LED profile.

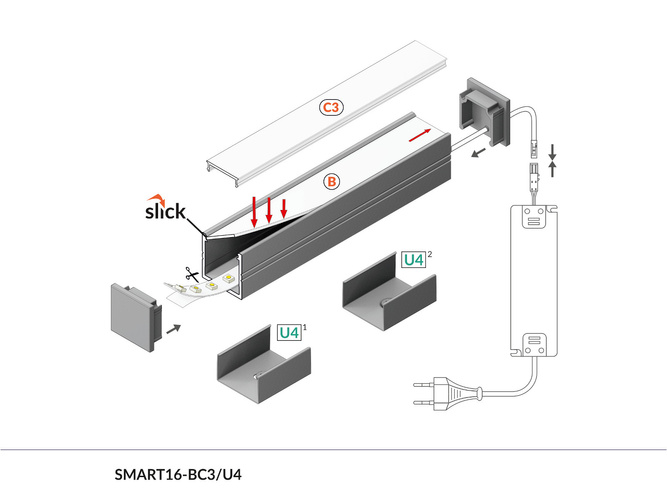

It is recommended to mount SMART16 LED profile using dedicated resilient mounting clip U4 (mounting clip U4 cone – veneering the profile with the mounting surface; mounting clip U4 – keeping the profile with a gentle distance from the mounting surface).

In addition to the aesthetic function, the profile is to serve as a heat sink in order to extend the LED strip life by protecting it from excessive overheating. The compatible diffuser cover and end caps protect the LED strip against dirt and mechanical damage.

Profile mounting manual and dedicated accessories for SMART16 LED profile are also available in the catalogue card.



DEDICATED CONE:

  • U4 cone flexible mounting plate
  • U4 flexible mounting plate

DEDICATED COVERS:

  • B slide cover (transparent, frosted, opal)
  • C3 click cover (transparent, opal, black)



HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:

The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.




GOOD TO KNOW

the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g.  SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.



ciągłą linia światła



Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.

Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.



PROFILE NAME MARKINGS:

Jak czytać nazwę profilu
