colour: | silver |
length: | 3 m |

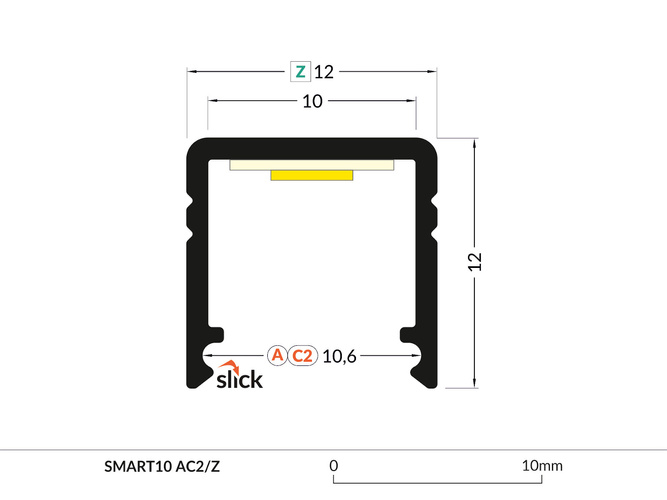

maximum tape width: | 10 mm |
kind of profile: | surface |
GTIN: | C2030020 |
manufacturer: | Topmet Light |
dedicated holdings: | Z flexible mounting plate, cone Z mounting plate |
compatible covers: | A slide (transparent, frosted, opal), C2 click (transparent, opal) |
product code: | C2030020 |
Files to download

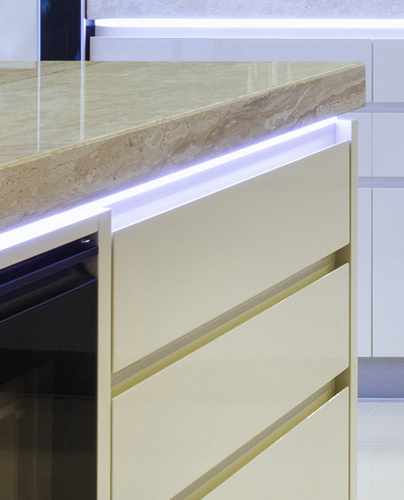

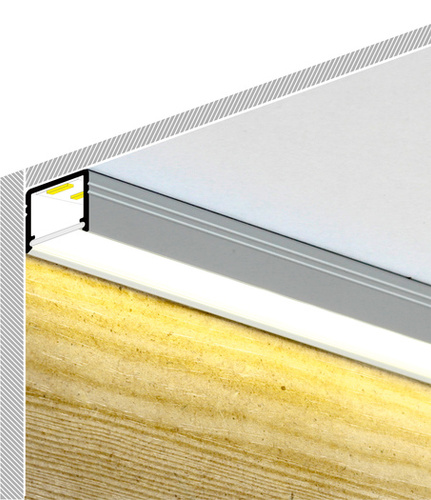

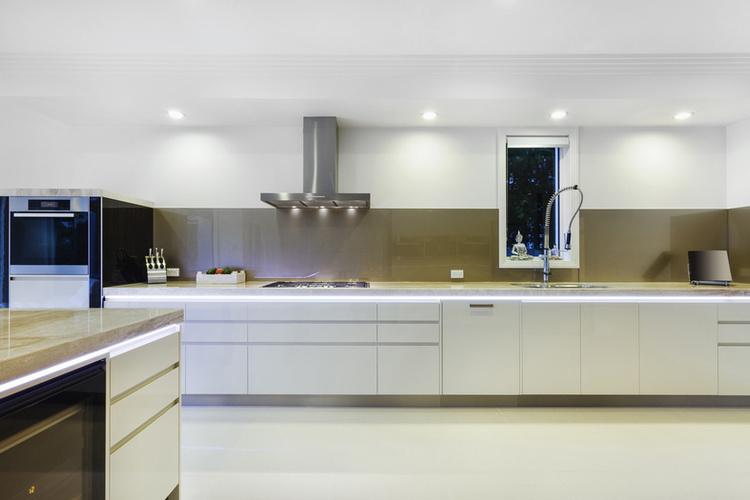

SMART10 LED aluminium surface profile of the Polish company TOPMET is perfect for interior lighting, wardrobes, shelves, shop shelves. In combination with opal diffusor cover and LED strip it is possible to reach the effect of a continuous light line.
There are 2 types of covers available to the SMART10 LED profile: A slide cover and C2 click cover

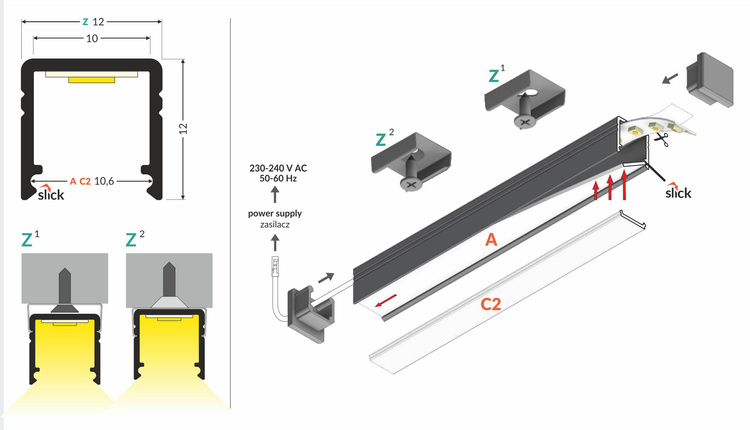

It is recommended to mount SMART10 LED profile using dedicated flexible mounting plate Z (cone Z flexible mounting plate – veneering the profile with the mounting surface; Z flexible mounting plate – keeping the profile with a gentle distance from the mounting surface).
In addition to the aesthetic function, the profile is to serve as a heat sink in order to extend the LED strip life by protecting it from excessive overheating. The compatible diffuser cover and end caps protect the LED strip against dirt and mechanical damage.

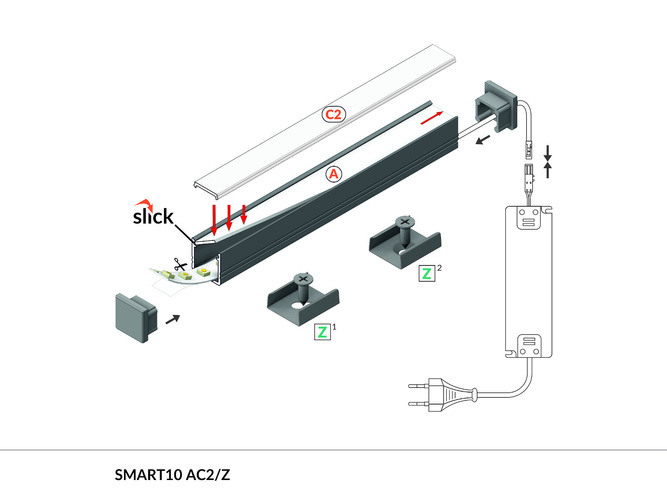

Profile mounting manual and dedicated accessories for SMART10 LED profile are also available in the catalogue card.
DEDICATED CLIP:
- cone Z flexible mounting plate
- Z flexible mounting plate
DEDICATED COVERS:
- A slide cover
- C2 click cover
DEDICATED CONNECTORS:
- SMART10 connector 90 deg
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
