length: | 3 m |
GTIN: | 5901597250784 |
dedicated connectors: | connector 60deg, 90deg, 120deg, 135deg, 180degt, 90deg bent, 270deg bent |
dedicated holdings: | Y flexible mounting plate, cone Y flexible mounting plate, X mounting plate |
compatible covers: | E slide (transparent, frosted, milk), F click (transparent, milk), E7 click (milk) |
material: | white powder coating aluminium |
maximum tape width: | 20 mm |
application: | surface |
product code: | C1050001 |
colour: | white |
Files to download
LINEA20 is a surface profile for LED light sources on the basis of which you will create a modern luminaire that will give amazing effect to your interior. This profile model, thanks to the possibility of using two rows of LED strips or modules with higher power, is not only able to provide the right amount of light, but above all will create a unique atmosphere and interior decoration.
The wide range of compatible accessories means that when creating a luminaire based on the LINEA20 profile, only our imagination limits us.
It is recommended to mount LINEA 20 LED profile using dedicated Y flexible mounting plate (Y cone mounting plate – veneering the profile with the mounting surface; Y mounting plate – keeping the profile with a gentle distance from the mounting surface) or T mounting plate. If you want to fix the profile with screws only, it is also worth buying the FIX16 aluminum cover.

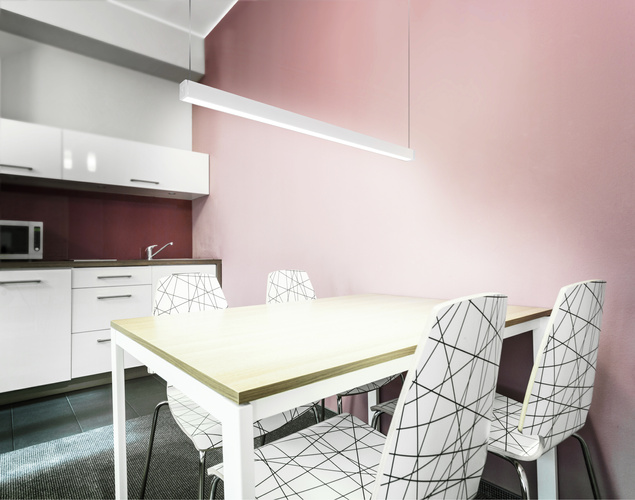

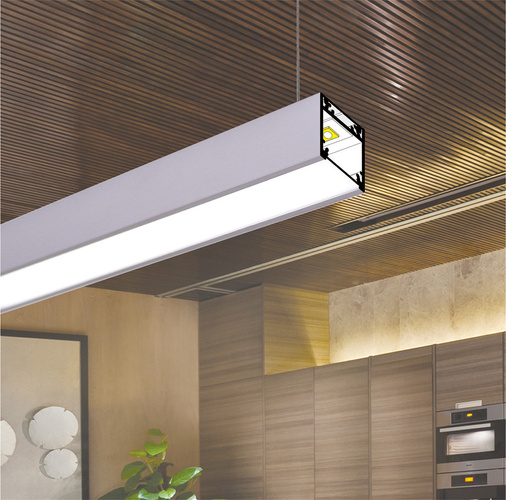

If LINEA20 profile is to be used as a hanging lamp, we recommend buying a sling for LED mounting 1500 or a power sling, thanks to which there is no need to bring additional cables.
Thanks to the available connectors of five different angles (60deg, 90deg, 120deg, 135deg, 180deg) it is possible to create many different light variations without having to cut the profiles at an angle. Furthemore using the LINEA20 180deg connector you can get a straight line of any length.
Using a dense stripe (at minimum 120p /m or COB) and a opal cover it is possible to obtain a uniform light line without visible LED points. If you want to create a luminaire with a length much greater than 2 meters, we recommend buying the F click opal cover in a 20m roll. We will then get a uniform line without any gaps through which light usually penetrates the cover connections.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.

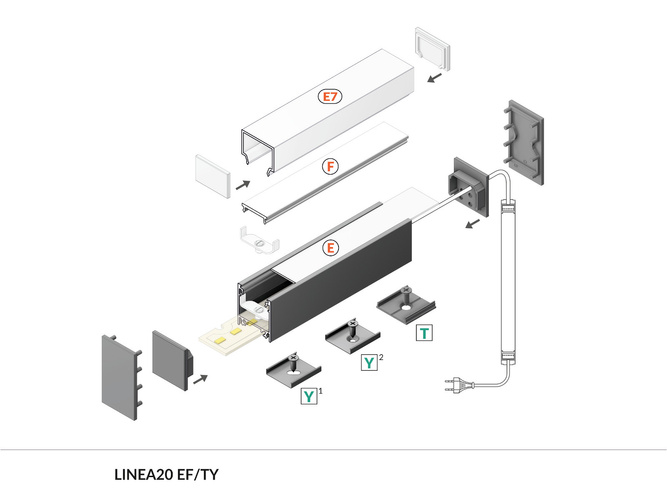

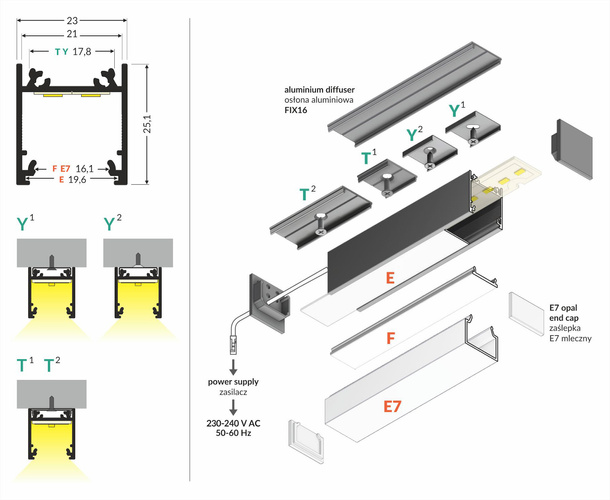

Profile assembly and dedicated accessories for the LED LINEA20 profile are shown in the catalog sheet.
DEDICATED MOUNTING PLATES:
- Y cone flexible mounting plate
- Y flexible mounting plate
- T mounting plate
DEDICATED COVERS:
- E slide cover (transparent/frosted/opal)
- F click cover (transparent/opal)
- E7 cover (opal)
DEDICATED ENDINGS:
- LINEA20 ending (while using E, F click covers)
- LINEA20-E7 ending (while using E7 cover)
DEDICATED ALUMINUM COVERS:
- LED profile FIX16 - enables closing the profile from above making it an aesthetic frame
DEDICATED SLINGS:
- SELV sling 50 V 1500(colour: white, black, silver)
- sling for LED mounting 1500 (colour: chrom)
DEDICATED CONNECTORS:
- LINEA20 60 deg connector
- LINEA20 90 deg connector
- LINEA20 120 deg connector
- LINEA20 135 deg connector
- LINEA20 180 deg connector
- LINEA20 90 deg connector bent (enables connecting profiles in two planes, e.g. wall, ceiling)
- LINEA20 270deg connector bent (enables connecting profiles in two planes, e.g. wall, ceiling)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.

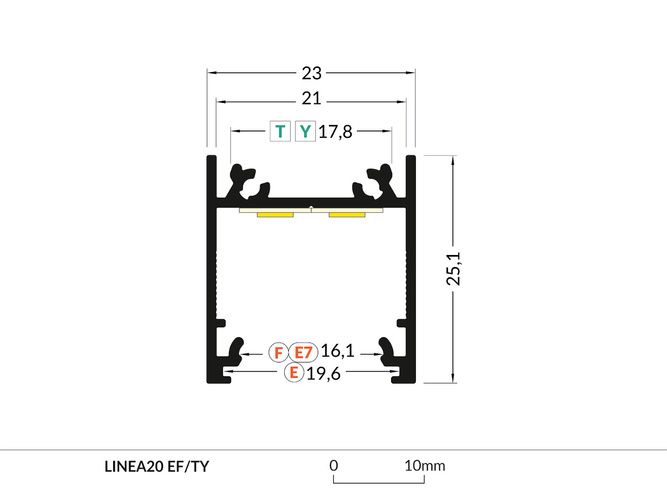

PROFILE NAME MARKINGS:
