LED profile HIDE10 C4 2000 alu.raw

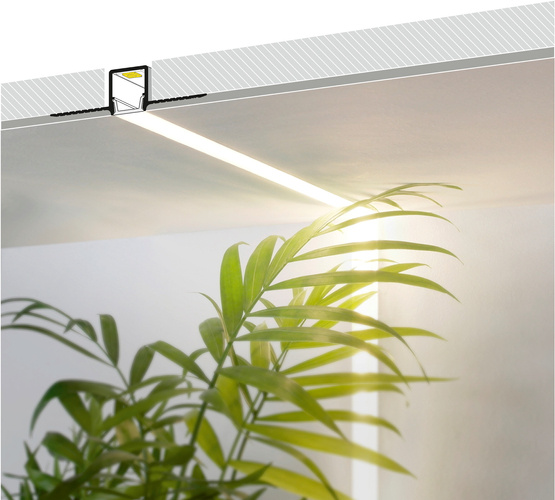

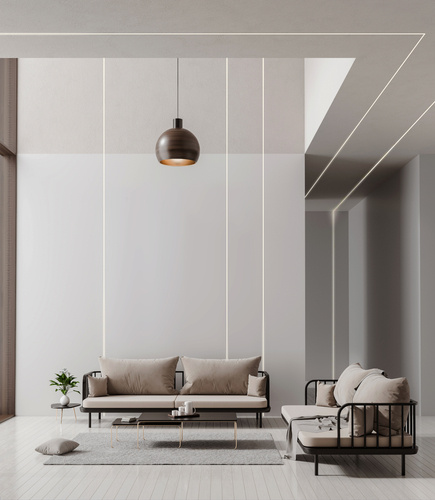

LED profile HIDE10 is a shallow aluminium LED profile for plasterboard. The simple form of the lighting profile, with its rather thin light line, makes it possible to create a variety of graphic compositions on ceilings and walls. Its small size, which allows the installation of LED strips up to 10 mm wide, means that the profile fits into the thickness of a standard plasterboard (12.5 mm). The LED profile HIDE10 is a model designed for plastering, so that the aluminium surface of the profile is completely concealed and only the glowing glow of light remains visible. It is recommended to reinforce the putty area of the profile with a reinforcing mesh under the gypsum smoothness.
Continuous line of light possible with 120 p/m tape or COB tape.
- klik „C4” (opal)
- end cap HIDE10 with hole
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
PROFILE NAME MARKINGS:
