| product code: | B2000020 |
| GTIN: | 5901597229216 |
| dedicated holdings: | cone U5 mounting plate, side u5 mounting plate |
| compatible covers: | click C (transparent, milk) click D (milk) |
| manufacturer: | Topmet Light |
| maximum tape width: | 12 mm |
| kind of profile: | special application |
| length: | 1 m |
| colour: | silver |

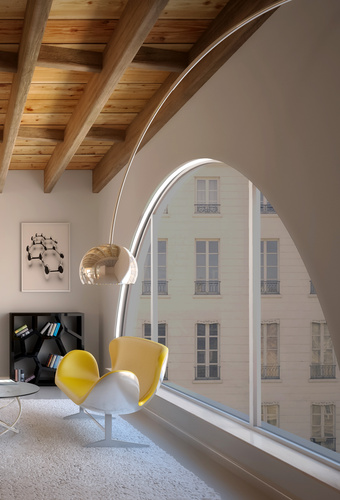

ARC12 is a special aluminum profile that, thanks to its bending capabilities, is used in a variety of modern architectural solutions. The simple and minimalistic form of the profile provides discreet modern lighting.

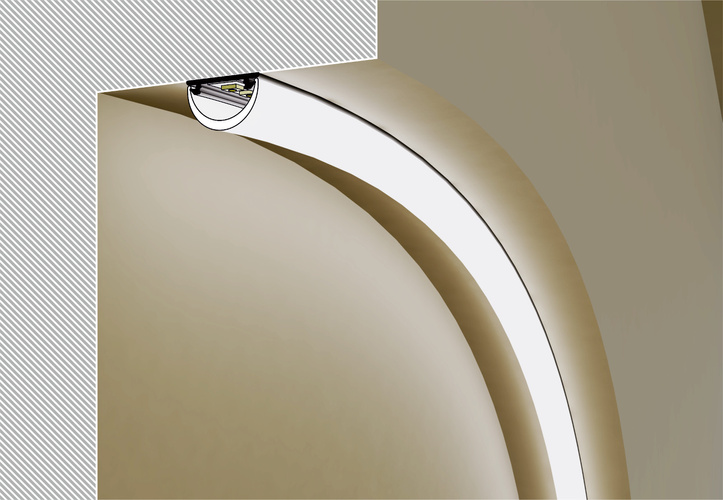

ARC12 LED profile has the ability to bend in two directions on one plane while maintaining the shape of the bend. It is ideal for use on rounded surfaces, among others for creating arcs and waves. However, it should be remembered that the minimum bending radius in this case is 50cm.

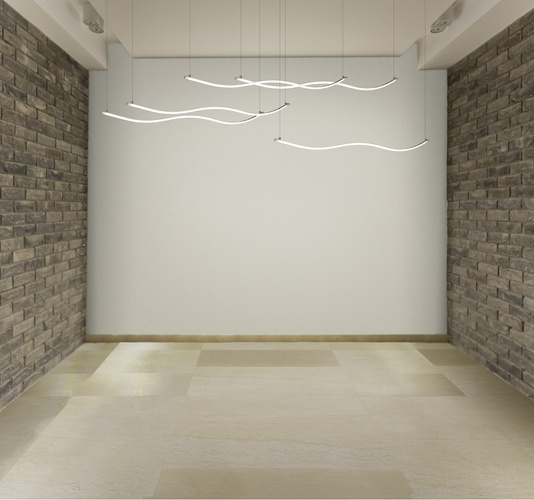

ARC12 LED aluminum profile can also be used as a modern, simple form, hanging luminaire. If ARC12 LED profile is to be used as a hanging lamp, it is recommended buying a SELV 50V power sling, thanks to which there is no need for additional cables.
An interesting offer of compatible accessories and the possibility of bending the profile mean that creating a luminaire based on ARC12 LED profile is really limited only by your imagination.
The ARC12 LED profile is available in four basic colors: white, silver anodized aluminum, black anodized aluminum and raw aluminum. Matching color endcaps can be selected for each profile.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
DEDICATED MOUNTINGS:
- U5 cone flexible mounting plate
- U5 side mounting plate
DEDICATED COVERS:
- C click cover (transparent, opal, black)
- D click cover (opal)
DEDICATED ENDINGS:
- ARC12 ending (white, silver, grey, black) - compatible with the C click cover.
- ARC12 D ending - compatible with the D click covers.
DEDICATED SLINGS:
- SELV sling 50 V 1500 (silver, black, white)
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
PROFILE NAME MARKINGS:
