T connector 180deg, SURFACE14 connector 90deg
Y flexible mounting plate, cone Y flexible mounting plate, X mounting plate
E slide (transparent, frosted, milk), F click (transparent, milk), E7 click (milk)
white powder coating aluminium
Files to download

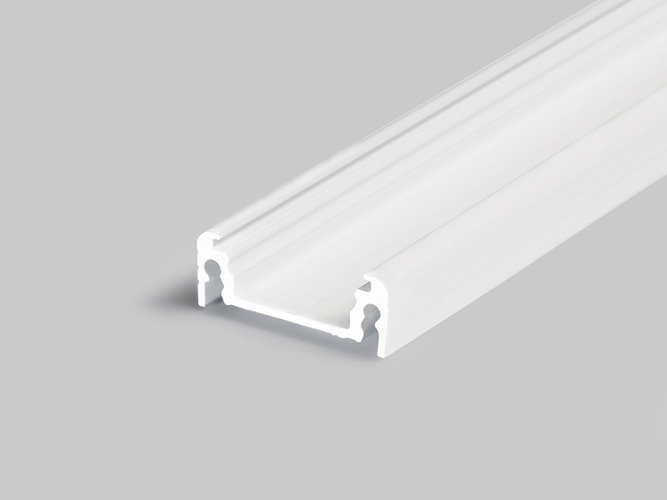

SURFACE14 EF/TY LED profile 2000 white powder coated aluminum
SURFACE14 EF/TY LED profile of the Polish company TOPMET is intended for surface mounting with a wide range of applications. The profile is deal for use as a decorative element in furniture manufacturing. It is most often chosen by our customers as an under-cabinet lighting, e.g. in the kitchen.
SURFACE14 LED profile in 2m section is made of white powder coated aluminum.
It is recommended to mount SURFACE14 LED profile using dedicated Y flexible mounting plate (Y cone mounting plate – veneering the profile with the mounting surface; Y mounting plate – keeping the profile with a gentle distance from the mounting surface) or T mounting plate, which require the insertion of the profile, and not as in the case of Y clip - click in the profile. The profile can also be mounted with screws, mounting glue or good quality double-sided tape.
SURFACE14 is dedicated for easy-to-assemble transparent or opal F click cover and E slide cover in three different degrees of transparency.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
We offer the service of cutting profiles to the appropriate length. For this purpose, please contact us by phone: +48602502051 or by email: firstname.lastname@example.org
- Y cone flexible mounting plate
- Y flexible mounting plate
- T mounting plate
- E slide cover (transparent, frosted, opal)
- F click cover(transparent, opal)
- E7 cover
- SURFACE14 gen2 ending (white, silver, grey, black)
- SURFACE14 gen2 with hole ending (white, silver, grey, black)
- connector 180 deg
- connector 90 deg
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
PROFILE NAME MARKINGS:
