|maximum tape width:|
Y flexible mounting plate, cone Y flexible mounting plate,T mounting plate
F click (transparency, white, black)
Files to download

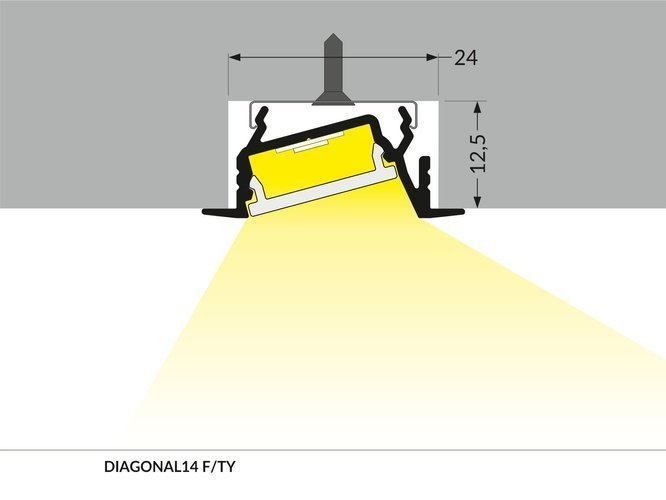

DIAGONAL14 F/TY LED profile 2m black anodized aluminium
Profile new type - a slot-angle version. Perfectly suited as under-cupboard lighting. Installation in the gap does not disturb the furniture or drywall construction aesthetics. The angular design of the profile provides zone proper illumination while using an appropriate LED light source.
The assembly of the DIAGONAL14 aluminum profile is possible with the use of dedicated Y spring holder("Y cone", which enable the profile to be flush with the mounting surface or with a gentle "Y" distance), and T rigid holders made of raw aluminum.
The DIAGONAL14 LED strip has a compatible F click-on covers with various levels of transparency to choose from: transparent, opal, black. The cover appropriate selection will ensure the desired lighting effect. If longer sections of the profile are mounted in one line it is recommend using F click-in opal cover a 20m roll.
The LED DIAGONAL14 profile in a 2m section is made of black anodized aluminium.
In addition to the aesthetic function the profile is to serve as a heat sink. It is designed to extend the LED strip life by protecting it from excessive overheating. The compatible cover and endings protect the tape against contamination and mechanical damage.
- Y spring cone
- Y spring
- T rigid
- F click cover (transparent, opal, black)
- DIAGONAL14 ending
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
PROFILE NAME MARKINGS:
