DEEP10 BC/UX LED profile 2000 raw aluminum
Each interior requires supplementing the main lighting with additional lighting points. In this way, we emphasize the charm of stylization, emphasize relaxation zones and illuminate the places where we perform activities that require increased brightness.

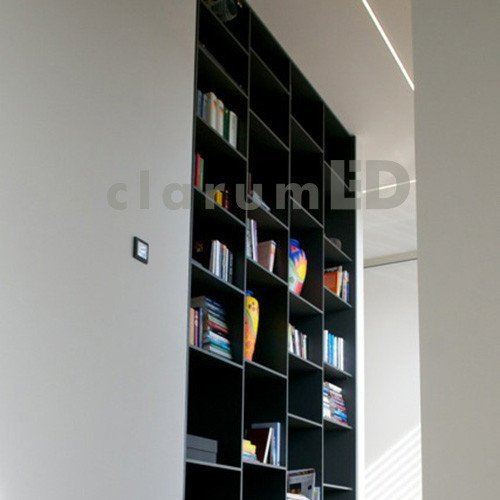

We present the model of the DEEP10 LED profile, which when using an economical LED light source min. 120p / m and a opal cover will achieve the effect of a continuous line of light (without visible LED spots) and create a climate suitable for the interior. The DEEP10 aluminum profile of the Polish company TOPMET will be perfect as lighting mounted in the building from plasterboard.
Mounting the DEEP10 aluminum profile in a milled slot in furniture or board is possible using dedicated U flexible mounting plate (cone U mounting plate – veneering the profile with the mounting surface; U mounting plate – keeping the profile with a gentle distance from the mounting surface), X mounting plate made of raw aluminum, rack U flexible mounting plate ensuring solid installation in wood, plasterboard, MDF, or U flexible mounting plate, which works well when installing a profile in plasterboard.
DEEP10 LED profile has different types of screens, the right choice of which will provide the desired light effect, dispersion and light distribution. The most economical version of the cover in the DEEP10 LED profile is the B slide cover (transparent, frosted, opal). More convenient in assembly and disassembly is, however, the C click cover (transparent, opal), which assembly consists in pressing the aluminum profile embedded in the cutter. The C lens click cover directs the light beam into a 40deg angle.
DEEP10 LED profile in 2m section is made of raw aluminum.
In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.
- U cone mounting plate
- U flexible mounting plate
- rack U flexible mounting plate
- X mounting plate
- spring X mounting plate
- B slide cover (transparent, frosted, opal)
- C click cover (transparent, opal)
- C lens cover (transparent)
- DEEP10 gen2 with hole ending (rounded shape)
- DEEP10 gen2 SQ with hole ending (edged shape)
- X connector 180 deg (for connecting profiles in one line)
We offer the service of cutting profiles to the appropriate length. For this purpose, please contact us by phone: +48602502051 or by email: firstname.lastname@example.org
HOW TO CHOOSE THE DIFFUSER COVER CORRECTLY:
The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.
GOOD TO KNOW
the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g. SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.
Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.
Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
