FLAT8 H/UX LED profile 1000 anodized aluminum

Producer:Topmet Light
Product code:23040020
15,58 €
/ piece
Tech specs:
1 m
dedicated connectors:
X connector 180deg
anodized aluminium
Topmet Light
compatible covers:
H slide (transparent, frosted, milk)
product code:

Files to download

  • folder

Functionality, ecology and good design are an important lighting differentiator based on our LED profiles, which determine their unflagging popularity.

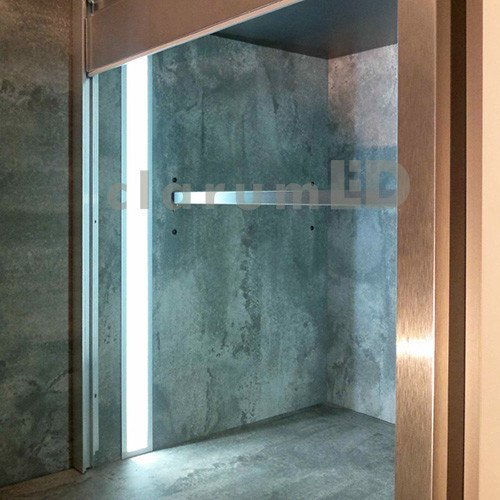

FLAT8 is an inlet profile, thanks to which we can emphasize selected elements of the decor, as well as create the right atmosphere in the room. The profile design requires mounting the LED strip in the side wall of the profile, thanks to which the profile shines with its entire surface. It is enough to equip the profile with an 8 mm wide LED strip and a minimum density of 120p / m and H cover opal to enjoy a continuous light line without visible LED spots.

Mounting the FLAT8 aluminum profile in a milled slot in a board is possible using dedicated U flexible mounting plate (cone U mounting plate – veneering the profile with the mounting surface; U mounting plate – keeping the profile with a gentle distance from the mounting surface), X mounting plate ensuring solid installation in  plasterboard. You can also use good quality double-sided tape or mounting glue.

FLAT8 is a profile for modern interiors and those characterized by full minimalism of arrangement. Our clients choose the FLAT8 profile, creating small luminaires for LED backlighting of steps on its basis. We recommend using FLAT8 profiles wherever it is advisable to supplement the main lighting.

The simplicity of the profiles form available in several colours (satin, white and black) makes the aluminum profiles available in our offer work well in both classic and modern interiors.

FLAT8 LED profile in 1m section is made of white powder coated aluminum.

In addition to the aesthetic function, the profile is to serve as a heat sink that is designed to extend the life of the LED strip, protecting it from excessive overheating. On the other hand, the compatible cover and ending caps protect the strip against dirt and mechanical damage.



  • U cone mounting plate
  • U flexible mounting plate
  • X mounting plate
  • spring X mounting plate



  • H slide cover (transparent, frosted, opal)



  • FLAT8 with hole ending



  • X connector 180 deg (for connecting profiles in one line)





The covers differ in the material they are made from and the transparency degree. Due to this differentiation it is possible to plan the light dispersion and obtain the desire light effect. The transparent cover absorb the least light, next is frosted and opal.



the opal slide-in diffuser cover embedded in a sufficiently deep aluminium profile (e.g.  SMART10, SMART16, LINEA20), in combination with LED strip of at least 120 p/m allows to achieve the effect of a continuous light line.

Slide cover (signifying: A, B, E, G, H, J, A9) – made of plastic with three transparency levels (transparent, frosted and opal). It is necessary to insert diffuser cover from the beginning of the profile and drag along the marked socket or click into the Slick socket.

Click cover (signifying: C, C1, C2, C3 D, F, I, K, C9) – its assembly and disassembly is more convenient. It is recommended to choose this type of diffuser cover if the aluminium profile is mounted in a recess or other hard-to-reach places.
